Soundmaster EliteLine KTD1020SI kitchen radio multi media center for undercounter with CD, DVB-T2, DAB+, FM, USB and Bluetooth

€278,66
€278,66 €329,90
Sale Sold out
Tax included. Shipping calculated at checkout.

Secure payment

  • American Express
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

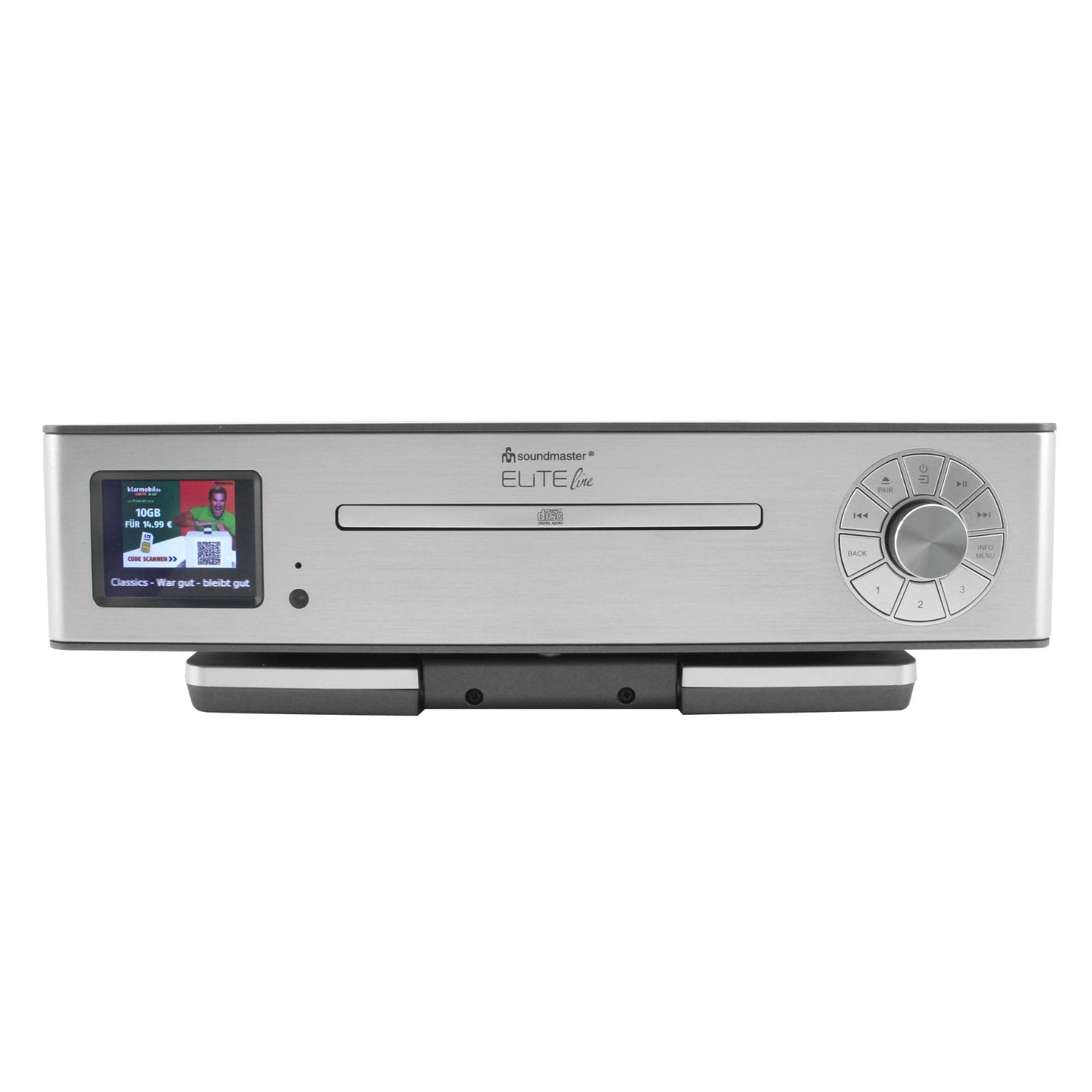

Soundmaster EliteLine KTD1020SI – High-quality under-cabinet multimedia center with 10" color TV and DAB+ radio

The Soundmaster EliteLine KTD1020SI is the ultimate all-in-one solution for modern workplace entertainment. This space-saving under-cabinet unit combines a full DVB-T2 HD television experience with a powerful digital radio, CD player, and modern Bluetooth connectivity in an elegant silver housing.

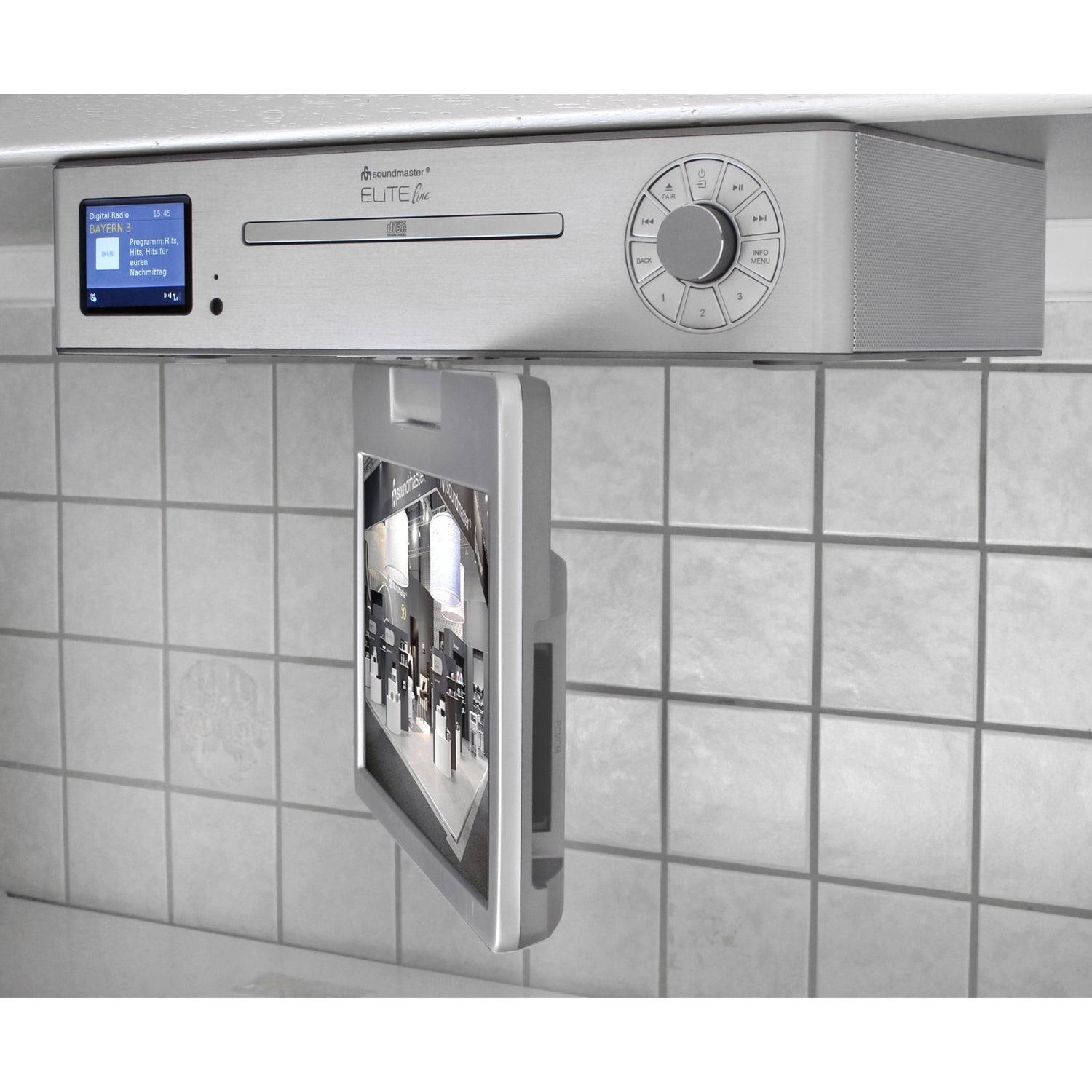

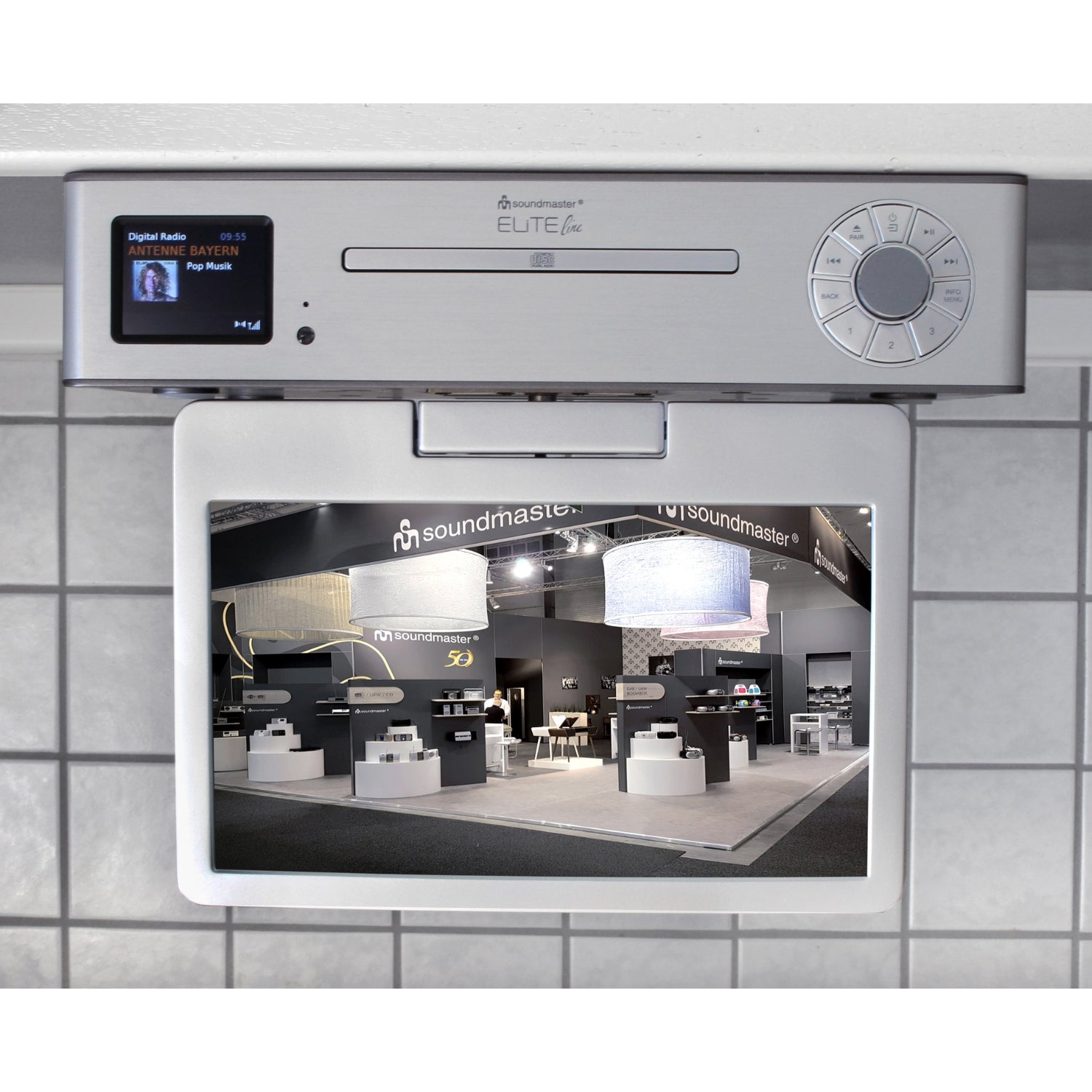

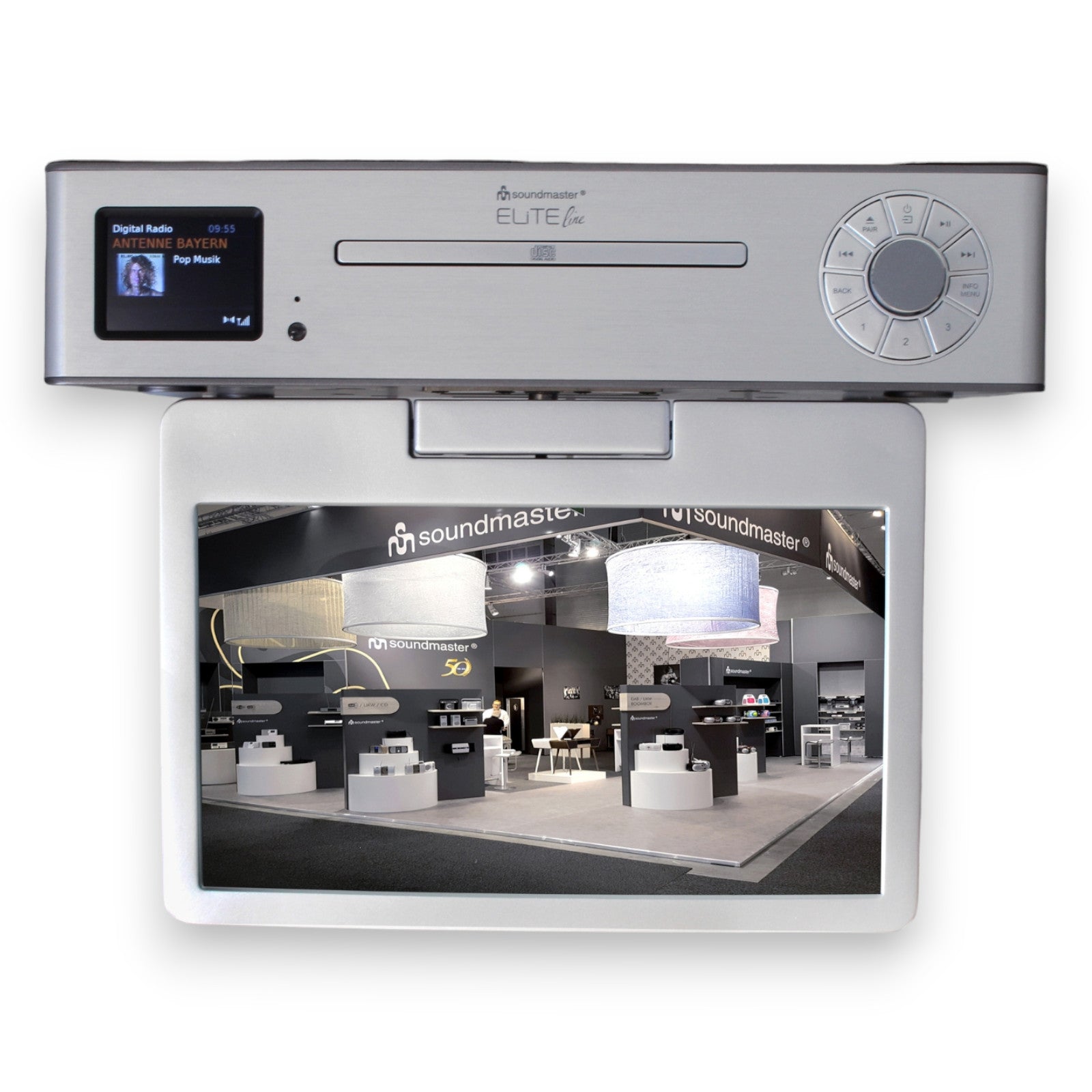

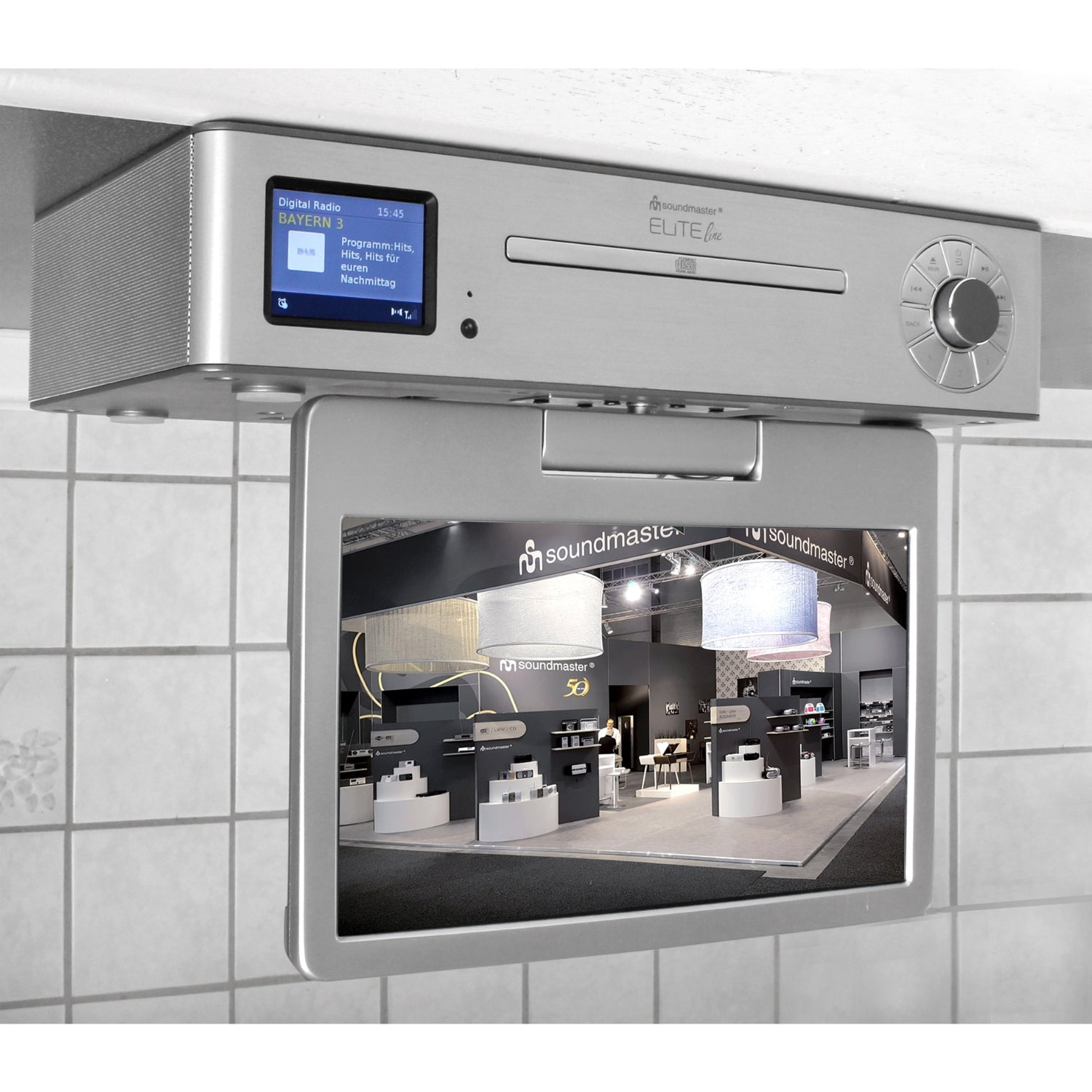

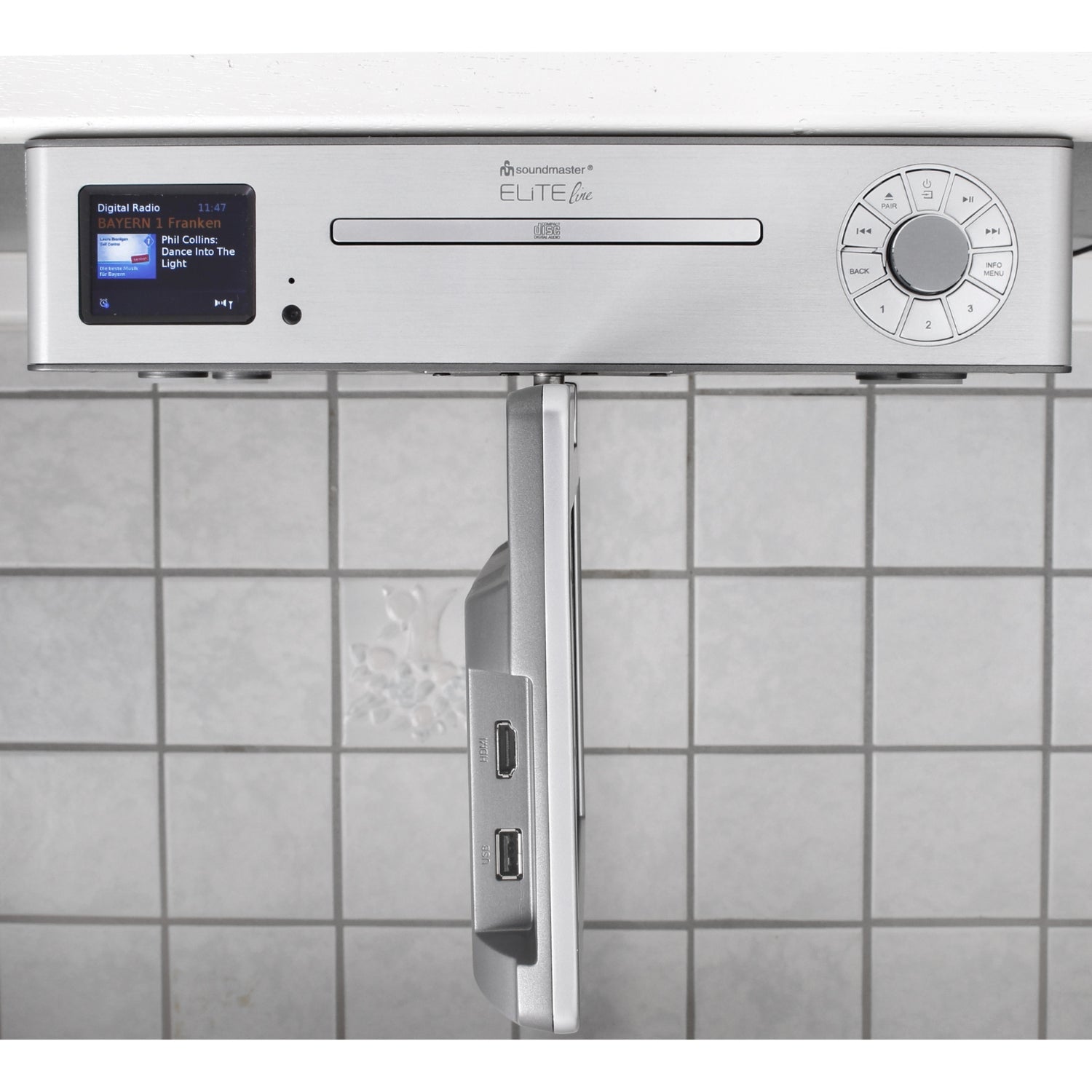

Whether in your home kitchen or, thanks to the 12V connection, in your camper van – the flexible 10" (25 cm) TFT display can be rotated horizontally by 270° and tilted vertically by 180°. This allows you to perfectly view your favorite shows or cooking tutorials from any angle, and after use, you can simply fold the screen down under the device to save space.

Highlights

  • Integrated 10" (25 cm) TFT color screen with DVB-T2 HD and DVB-C receiver
  • Flexible display (270° horizontal swivel, 180° vertical tilt) [3]
  • Digital radio DAB+ and FM-RDS with 40 station presets each [2]
  • CD player (CD, CD-R/RW, CD-MP3) with audiobook function (Resume) [3]
  • Bluetooth® receiver function for wireless music streaming
  • USB port for playing MP3, JPG and video files
  • PVR recording function and timeshift (time-shifted television) via USB [3]
  • Hands-free device for phone calls via the integrated speakers [2]
  • HDMI input for external players or streaming sticks
  • Additional kitchen timer, dual alarm and sleep timer [2]
  • Prepared for 12V operation (ideal for caravans and motorhomes)

Test results & awards

  • Award: "Product of the Year 2023" in the category of Internet/DAB+ radios
  • HiFi Test (06/2022): Rating "Very good" (1.2) in the upper class – Price/performance: Very good

Matching accessories

For safe operation in motorhomes or caravans on the on-board electrical system, we recommend the suitable Soundmaster KTD12V car adapter .

Scope of delivery

  • Soundmaster EliteLine KTD1020SI

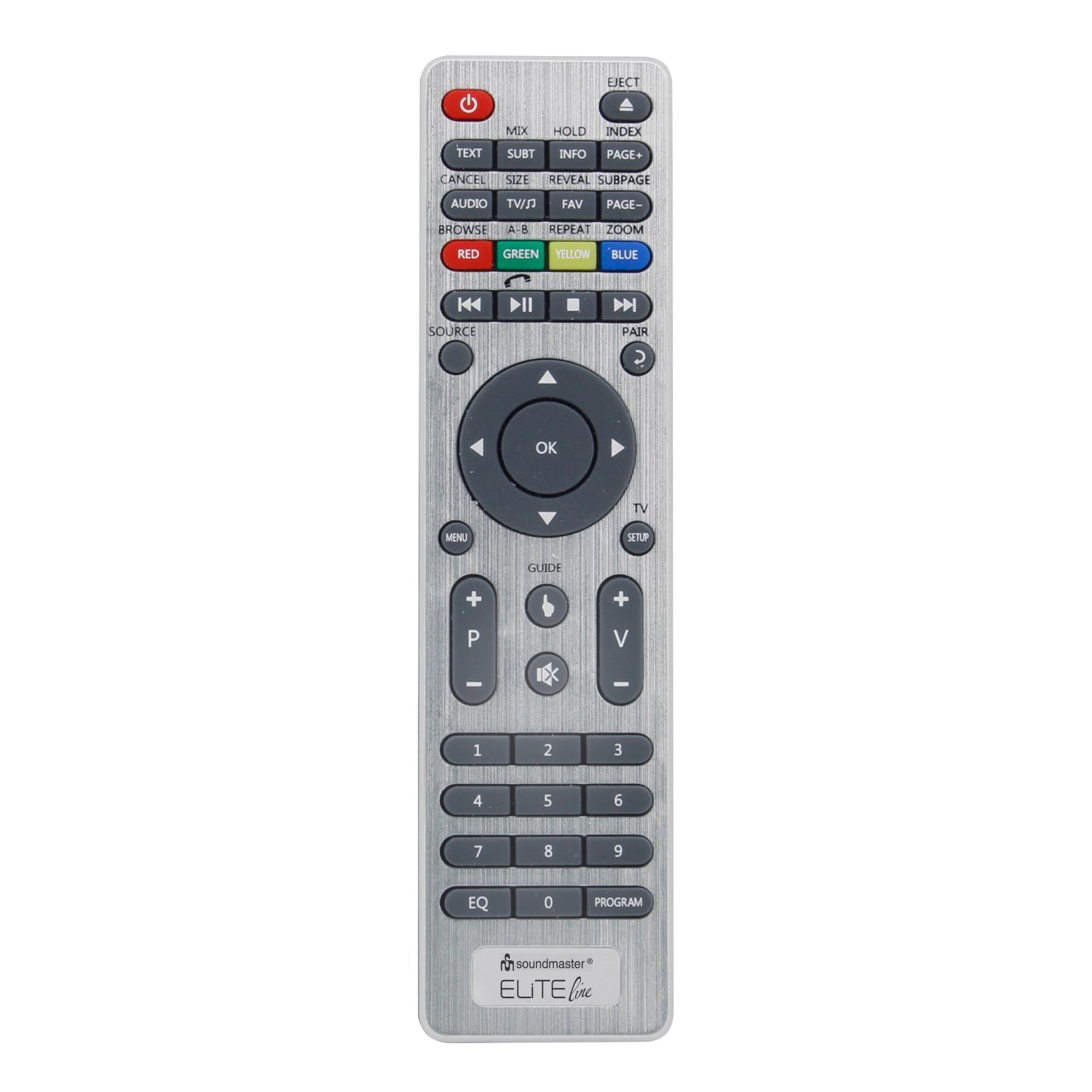

  • remote control
  • DVB-T antenna
  • DAB antenna
  • AC/DC power adapter (12 V / 1.5 A)
  • Complete mounting hardware (spacers, screws, drilling template)

Technical data

Device type Underfloor multimedia center
Display type TFT color screen
Screen diagonal 10" (25.4 cm)
Image format 16:9
Display rotation (horizontal) 270°
Display tilt (vertical) 180°
TV tuner (DVB-T2) HD receiver (H.265)
TV tuner (DVB-C) Cable TV receiver
Encryption CI slot available (for pay TV)
Recording function (PVR) Instant recording via USB
Time-shifted television Timeshift function via USB
DAB+ radio Digital radio reception
FM radio FM PLL with RDS function
Station memory 40 memory slots each (DAB+ / FM)
Direct dial keys 3 buttons on the device
CD playback CD, CD-R, CD-RW, CD-MP3
Audiobook function Resume function (CD operation)
Bluetooth Reception function & hands-free device
USB formats MP3, JPG, Video
USB charging function 5V / 1A output
Equalizer Pre-programmed sound settings
Kitchen functions Kitchen timer (egg timer)
Alarm function Dual alarm (2 wake-up times)
Wake-up mode Weekend function integrated
Sleep function Sleep timer
Video/Audio connections HDMI-IN
Connections Data USB

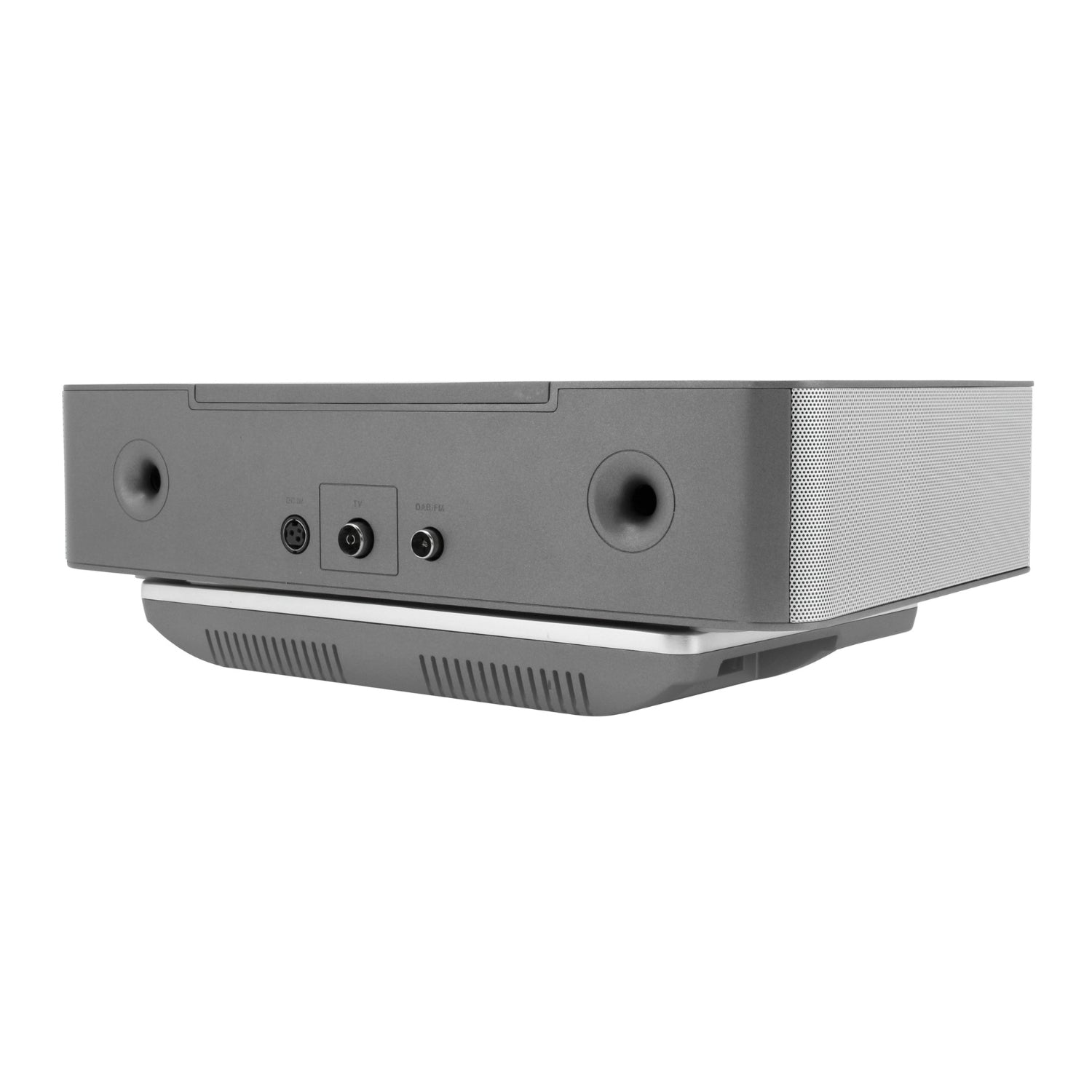

Antenna connection 75-Ohm (DVB-T2/C and DAB+/FM)
Audio performance 2 x 7 Watt RMS
power supply AC 230V~50Hz / DC 12V 1.5A
Power consumption (operation) 15 watts [4]
Power consumption (standby) 0.3 watts [4]
Weight 2.47 kg [4]
Dimensions (closed) 33.0 x 21.5 x 11.1 cm (W x D x H)
Dimensions (open) 33.0 x 21.5 x 25.0 cm (W x D x H)
Case color Silver
GTIN / EAN 4005425010241

FAQ – Frequently Asked Questions

Will the KTD1020SI fit under every kitchen cabinet?

Yes, the device is specifically designed for under-cabinet mounting. Thanks to the included drilling template and spacers, it can also be securely mounted under cabinets with light panels. For optimal longevity, ensure adequate ventilation from above.

How can I improve DAB+ reception when mounting the device under a cabinet?

Digital radios are sensitive to interference. If possible, keep a distance of approximately 50 cm from LED power supplies, routers, or microwave ovens. Since the device has a 75-ohm antenna connection, you can easily connect an active indoor antenna or your house antenna if the signal is weak. [4]

Does the CD player have an audiobook function?

Yes, the KTD1020SI has a resume function. The device remembers the last playback position on the CD and resumes playback from exactly that point after being switched back on – ideal for audiobooks and long music tracks.

Can I connect a Fire TV Stick or Apple TV?

Yes, external streaming sticks can be connected via the HDMI input. If you experience audio problems, please switch the audio output on the stick to "PCM", as the device does not decode multi-channel formats such as Dolby Digital.

Is the device suitable for use in a motorhome?

Absolutely. Thanks to its 12V DC connection, it's ideal for caravans. For direct connection to the vehicle's electrical system, we recommend the optionally available KTD12V adapter to absorb voltage spikes and protect the device.

What code do I need for a universal remote control?

For Soundmaster devices, the codes 0341 or 022 will work in most cases. If you are using a learning remote control, you can also transfer the commands directly from the original remote control supplied with the device.

Can I connect Bluetooth headphones to the radio?

No. The device has a Bluetooth receiver function to play music from a smartphone through the radio speakers. However, it cannot send a Bluetooth signal to headphones or external speakers.
